CNCTOPBAOS Rotational 4th Axis A axis Rotary Table,K11-100mm 3 Jaw Chuck Dividing Head,Gapless Harmonic Gearbox Reducer Ratio 50:1 w/ 65mm Tailstock for CNC Router Engraving Milling Machine
4.4 (77 items)
Limited Time SaleUS$252.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 216491976 | Release Date | 2026/04/19 | List Price | US$168.00 | Model Number | 216491976 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

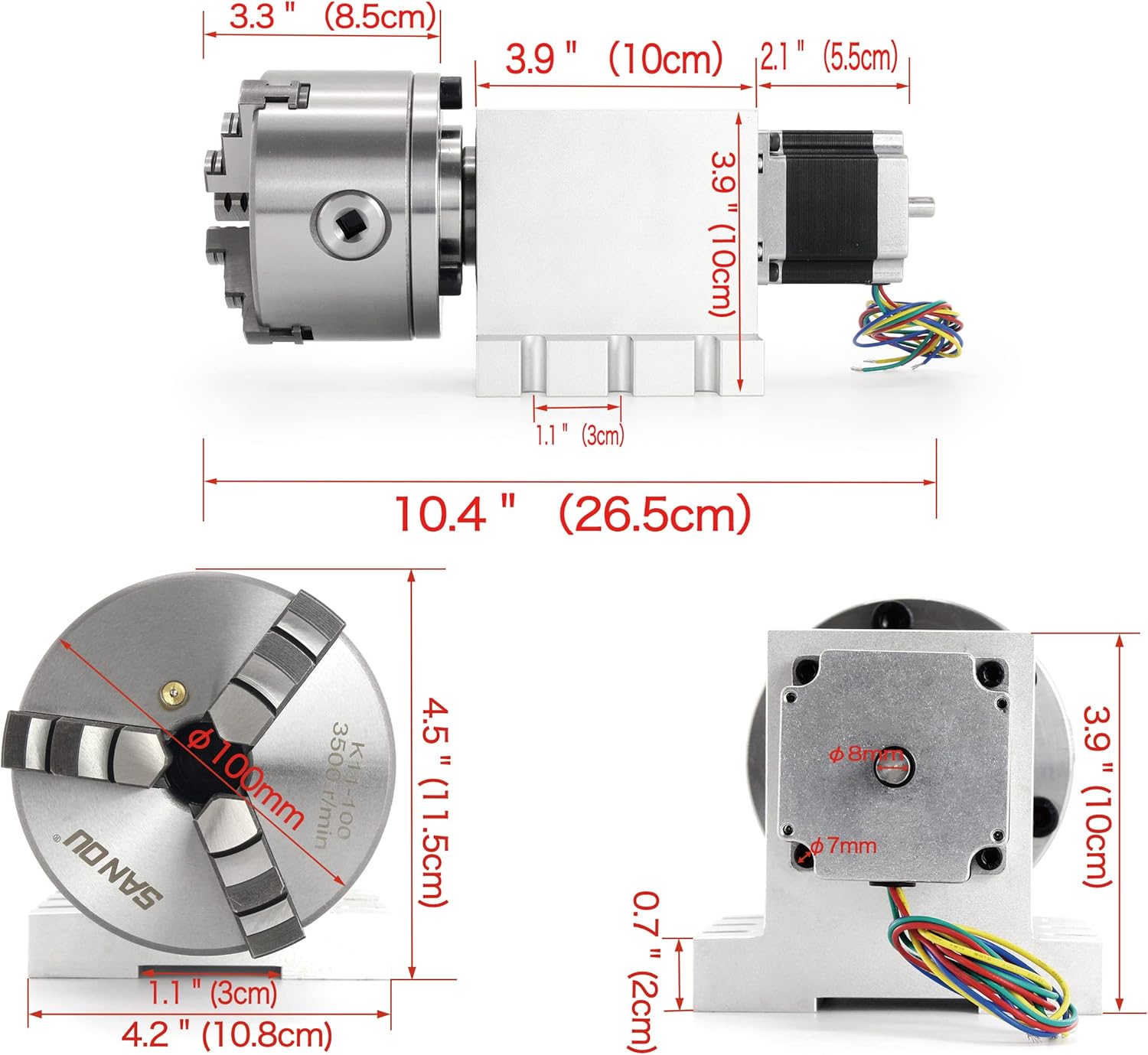

- Specifications of 4th Axis: Center height: 65 mm 2.56"; Total height:; 105 mm 4.13"; Angle: 0.036°/step ; Gearbox model: 17-50; Reduction ratio: 50:1; Base Material: Aluminum alloy; Size: 260x110x105 mm 10.2x4.34x4.13"; Weight: 6.8 KG / 14.98 LB
- Specifications of Chuck: K11-100 3 Jaw self-centering chuck; Diameter:100 mm 3.93 inch; With 3 Anti-claw and Wrench; Max input torque: 60N.m; Max Speed: 3500 R/min; External jaw clamping range: 30-80mm 1.18-3.15 inch.; Internal jaw clamping range: 2-30mm 0.08-1.18 inch; Internal jaw jamming range: 30-90mm 1.18-3.54 inch
- Specifications of Tailstock: Morse Taper 2 Live Center Movable MT2 Tailstock; Center Height: 65mm 2.56 inch; Expansion stroke: 45mm 1.77 inch; Stretch distance: 50mm 1.97 inch; Top tip: Activity type; With Axial locking wrench for tailstock; Weight: 2.5 KG 5.5 LB
- Specifications of Stepper Motor: Hybrid Nema23 Stepper Motor; Phase: 2-phase; Size: 57x57x56mm; Step Angle: 1.8°; Holding Torque: 12kg.cm/178oz-in/120N.cm; Rated Current:3A; Shaft dia:8mm; 4 Lead Wires: A+ to Red ; A- to Green ; B+ to Yellow ; B- to Blue
- Features: Adopting gapless harmonic gearbox,with higher precision, no backlash, high rigidity, high efficiency, stable structure, smooth operation; Made of high quality aluminum alloy, anti rust coating process, fine workmanship, excellent forging process, and long service life
| UPC | 785004502735 |
|---|---|
| Capacity | 63 Millimeters |
| Lock Type | Combination |
| Brand Name | CNCTOPBAOS |
| Handle Type | hand-tightened |
| Item Weight | 2.42 Kilograms |
| Manufacturer | Changzhou Rattm Motor Co.,Ltd |
| Model Number | K11-100mm 50:1 |
| Item Diameter | 100 Millimeters |
| Material Type | Aluminum |
| Compatible Devices | Milling Machine |

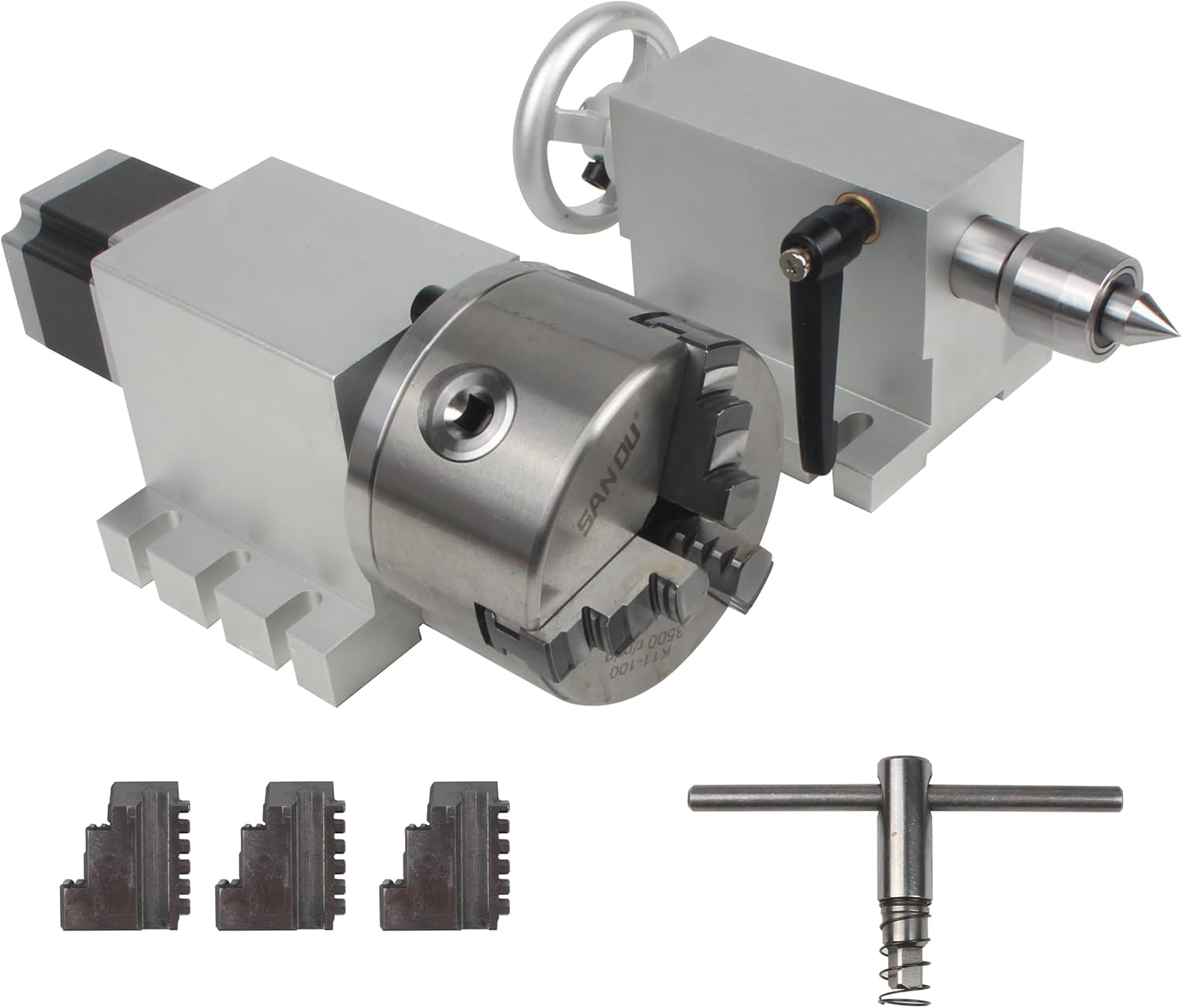

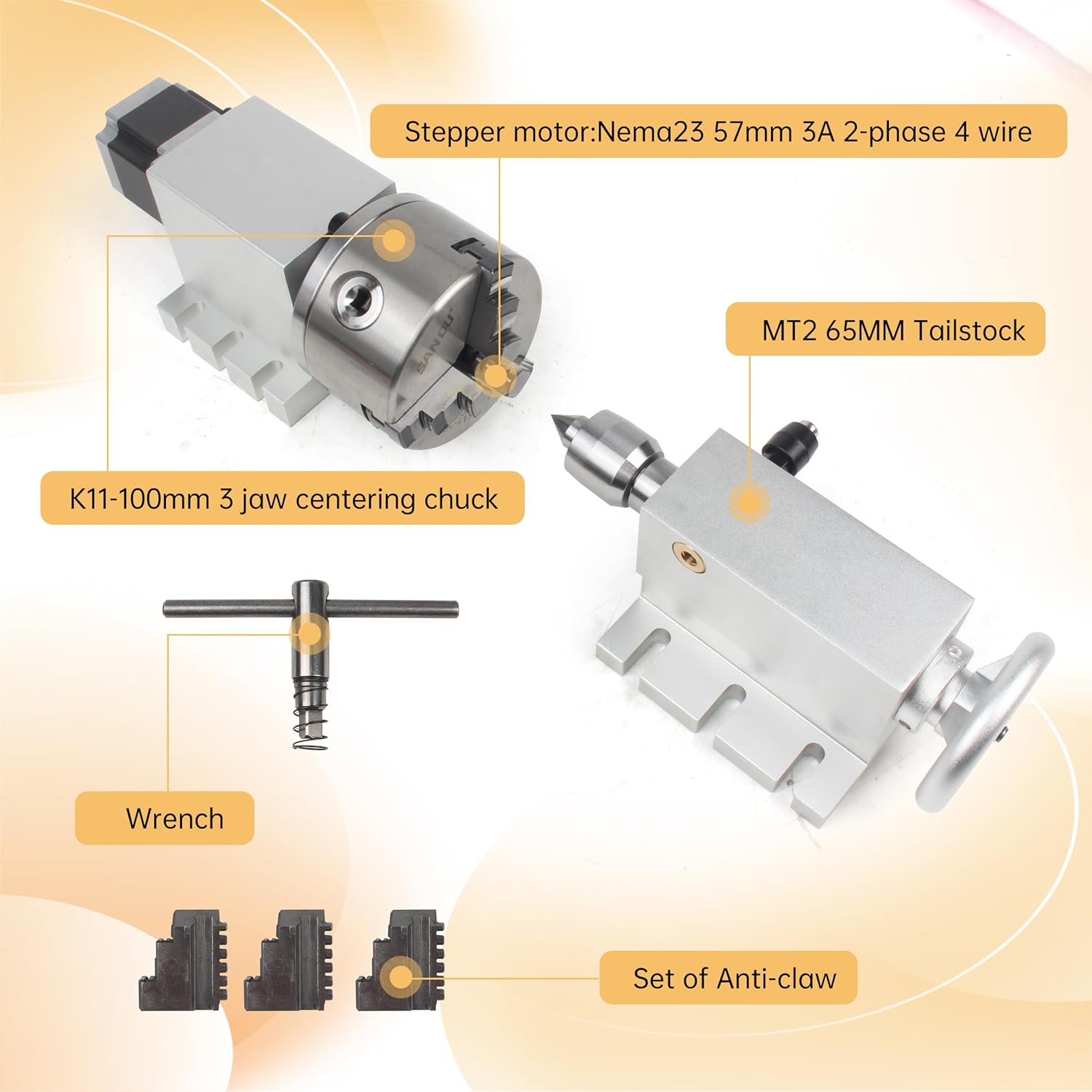

| Included Components | 3 Jaw Chuck, Anti-claw, Nema23 Stepper Motor, Tailstock |
| Manufacturer Part Number | S23 |
